Adapting to Complex Working Conditions, Offering Flexible and Diverse Products
Position: Index>Products>Knife Gate Valve Series>Manual Knife Gate Valve > Manual Flanged Knife Gate Valve
Design and manufacture: JB/T8691-1998 structural length: GB/T15188.2-94 Flange connection: GB/T9113.1-2000 JB/T79-94 testing and acceptance: GB/ T13927-92
Design and manufacture: JB/T8691-1998
structural length: GB/T15188.2-94
Flange connection: GB/T9113.1-2000 JB/T79-94
testing and acceptance: GB/T13927-92
Key parts material
Valve body, upper cap | Carbon steel, stainless steel |
Valve plate | stainless steel |
Stem | stainless steel |
Seal ring | Rubber, PTFE, stainless steel,hard alloy |
Key performance indicators
Nominal pressure | PN |
Casing test | 1.5XPN |
Leak test | 1.1XPN |
Operating temperature | ≤425℃Rubber 80℃, PTFE≤180℃, hard sealing ≤425℃ |
Working medium | Syrup, paper pulp, sewage, coal slurry, dust, slag-water mix |

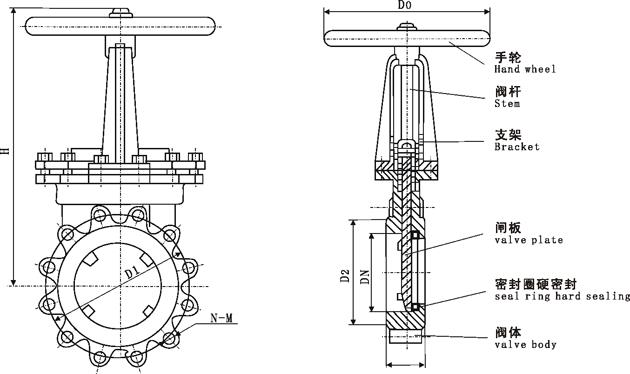

Profile and connection dimension Unit:mm
Nominal pressure(MPa) | Nominal through diameter（mm） | L | D | D1 | D2 | H | N-M | D0 |
1.0 | 50 | 48 | 160 | 125 | 100 | 285 | 4-M16 | 180 |
65 | 48 | 180 | 145 | 120 | 298 | 4-M16 | 180 | |
80 | 50 | 195 | 160 | 135 | 315 | 4-M16 | 220 | |
100 | 50 | 215 | 180 | 155 | 365 | 8-M16 | 220 | |
125 | 57 | 245 | 210 | 185 | 400 | 8-M16 | 230 | |
150 | 57 | 280 | 240 | 210 | 475 | 8-M20 | 280 | |
200 | 60 | 335 | 295 | 265 | 540 | 8-M20 | 360 | |
250 | 70 | 390 | 350 | 320 | 630 | 12-M20 | 360 | |
300 | 80 | 440 | 400 | 368 | 780 | 12-M20 | 400 | |
350 | 80 | 500 | 460 | 429 | 885 | 16-M20 | 400 | |
400 | 89 | 565 | 515 | 482 | 990 | 16-M22 | 400 | |
450 | 89 | 615 | 565 | 532 | 1100 | 20-M22 | 530 | |
500 | 114 | 670 | 620 | 585 | 1200 | 20-M22 | 530 | |
600 | 114 | 780 | 725 | 685 | 1450 | 20-M27 | 600 | |
700 | 130 | 895 | 940 | 800 | 1700 | 24-M27 | 600 | |
800 | 180 | 1010 | 950 | 905 | 2000 | 24-M30 | 680 | |
900 | 180 | 1110 | 1050 | 1005 | 2300 | 28-M30 | 680 |
注：0.6MPa、1.0MPa、1.6MPa及美標(biāo)150Lb等連接尺寸見附錄
