Adapting to Complex Working Conditions, Offering Flexible and Diverse Products
Position: Index>Products>Knife Gate Valve Series>Electric Knife Gate Valve > Electric Flange Knife Gate Valve PZV973H
該產品驅動部分采用多回轉電動裝置，用以驅動和控制閥門的開啟和關閉，操作人員可以在控制室內遠距離對閥門進行控制也可以現場手動操作，也可以與計算機配合實現計算機自動控制。廣泛應用于排水、供熱、電站、化工、食品、造紙、制藥、煤碳、采礦等工程，滿足了現代工、農業自動化要求。
product description
The driving part of the product adopts a multi-turn electric device to drive and control the opening and closing of the valve. The operator can control the valve from a long distance in the control room, or manually operate it on site, or cooperate with a computer to realize automatic computer control. Widely used in drainage, heating, power station, chemical, food, paper, pharmaceutical, coal, mining and other projects, to meet the modern industrial and agricultural automation requirements.
Electric device parameters
◎Power supply: AC380V, 50HZ.
◎Standard type: The standard type has a dust-proof, rain-proof casing, protection level IP65, and can be directly used outdoors.
◎Waterproof: The product has a dustproof and water-proof (IP67) enclosure protection grade.
◎Explosion-proof type (EX): The explosion-proof type is DII BT4/DII CT4 (excluding acetylene).
◎Ambient temperature: -20℃~40℃
◎Optional: with electrical controller
Features
◎Quick opening and closing, reliable balance and high degree of automation.
◎The installation height and position are not limited.
◎It adopts explosion-proof electric device, which can work normally in flammable, explosive and even toxic gas environment.
◎Equipped with manual operation, in case of interruption of power supply, the valve can be manually opened or closed to effectively control the medium and prevent accidents.

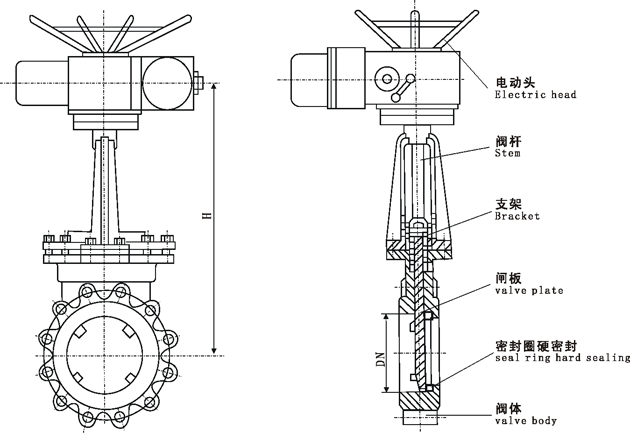

Nominal through diameter | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
Height | 375 | 460 | 590 | 780 | 950 | 980 | 1055 |
Nominal through diameter | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
Height | 1060 | 1230 | 1250 | 1767 | 1920 | 2010 | 2110 |
